gtag('config', 'AW-654510316'); When selecting hardware for a glass door, few decisions are as important as choosing the correct handle size. The right handle not only ensures comfort and usability but also enhances the door’s aesthetic appeal, complements the surrounding space, and provides the durability required for daily use. Whether the application is a modern office entrance, a frameless shower enclosure, or a sliding glass patio door, handle size directly influences both appearance and function.
At E-Star Hardware, we understand that customers value both technical accuracy and design harmony. This guide offers a complete breakdown of glass door handle sizes, covering standard dimensions, measurement instructions, recommendations for various door types, and installation considerations. We have also included a detailed size chart to make selection straightforward for installers, architects, and homeowners.
Why Glass Door Handle Size Matters?
Choosing the correct handle size is not simply about aesthetics; it is a matter of ergonomics, safety, and structural compatibility.
1. Ergonomics and Comfort
A handle should feel natural in the user’s hand, providing a secure and comfortable grip. For example, a narrow 19 mm diameter handle may be ideal for a residential shower, while a commercial entry door may require a thicker 32 mm tube for a more substantial feel.
2. Proportion and Design Balance
Handles that are too small can look out of place on tall doors, while overly large handles can overwhelm smaller panels. Correct proportion enhances the visual flow of the door and surrounding structure.
3. Compatibility with Door Thickness and Weight
Heavier or thicker glass panels require stronger handles with wider diameters and more robust mounting hardware to ensure stability and prevent undue stress on the glass.
4. Accessibility Considerations
In commercial spaces, accessibility regulations often require handles that are easy for all individuals to operate, including those with limited grip strength. Larger, well-positioned handles improve usability for a wider audience.
5. Brand Image and Visual Impact
In retail, hospitality, and corporate environments, a long, polished stainless steel handle can project an image of quality and professionalism, influencing customer perceptions before they even enter the premises.
Standard Glass Door Handle Sizes
While custom options exist, most glass door handles follow industry-standard dimensions. These dimensions help ensure compatibility with pre-drilled holes, ease of installation, and aesthetic balance.
Common Handle Lengths:
• 150 mm – 200 mm: Compact size, often used for shower doors or small sliding panels. • 300 mm – 400 mm: Medium size suitable for residential entrances, interior frameless doors, or small commercial spaces. • 600 mm – 800 mm: Long pulls, ideal for office entrances or taller residential glass doors. • 1000 mm – 1200 mm: Extra-long handles, often used in high-traffic commercial areas for dramatic visual effect and ease of operation.
Common Tube Diameters:
• 19 mm: Slim profile, best for light-duty applications.
• 25 mm: Standard grip size for most residential and light commercial uses.
• 32 mm: Heavy-duty, ideal for large commercial doors.
• 38 mm: Extra-thick grip for maximum durability and impact.

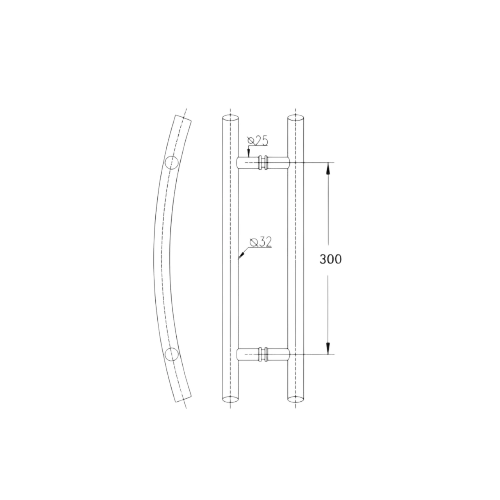

Center-to-Center Hole Spacing:
This refers to the distance between the two mounting points of the handle. It typically matches the handle length minus the decorative ends, ensuring structural stability. Standard spacing ranges from 145 mm for small handles to 1180 mm for the longest commercial pulls.
How to Measure for the Right Handle Size?
Selecting the correct size begins with accurate measurement. A precise fit avoids costly mistakes, ensures safety, and delivers the intended visual impact.
Step 1: Measure Door Height
As a general rule:
• Doors under 2000 mm in height typically suit handles of 150 mm–600 mm.
• Taller doors benefit from 800 mm or longer pulls for proportional balance.
Step 2: Measure Glass Thickness
• Shower glass doors: typically 8–10 mm thick.
• Frameless residential doors: usually 10–12 mm.
• Commercial glass doors: often 12–15 mm.
The handle hardware must be compatible with the glass thickness to prevent stress fractures.
Step 3: Measure Center-to-Center Distance
If replacing an existing handle, measure from the center of one mounting hole to the center of the other. This ensures the new handle aligns perfectly with pre-drilled holes.
Step 4: Determine Handle Type
• Single-Side Handle: Mounted on one side only.
• Back-to-Back Handle: Two handles connected through the glass with a shared mounting system.
Step 5: Consider Usage Context
A shower handle will differ in size and finish from an office door handle due to exposure to moisture, frequency of use, and aesthetic requirements.
Glass Door Handle Size Chart
| Door Type | Door Height | Glass Thickness | Recommended Handle Length | Tube Diameter | Center-to-Center Spacing | Notes |
| Shower Door | 1800–2000 mm | 8–10 mm | 150–300 mm | 19–25 mm | 145–295 mm | Compact, ergonomic grip |
| Office Glass Door | 2000–2400 mm | 10–12 mm | 600–1200 mm | 25–32 mm | 580–1180 mm | Premium look, easy to pull |
| Frameless Glass Door | 2000–2400 mm | 10–12 mm | 400–1000 mm | 25–32 mm | 380–980 mm | Minimalist, stylish |
| Sliding Glass Door | 1800–2400 mm | 8–10 mm | 150–400 mm | 19–25 mm | N/A (flush/recessed handles) | Space-saving design |
Choosing the Right Handle for Different Glass Door Types
1. Shower Glass Doors
For shower enclosures, smaller handles or knobs are typically used. Materials must be corrosion-resistant—E-Star recommends marine-grade stainless steel or brass with chrome plating. Common lengths are 150–300 mm, offering easy grip without dominating the panel visually.
2. Office Glass Doors
These often benefit from long pull handles, between 800 mm and 1200 mm. A brushed stainless steel finish provides a professional look and resists fingerprints. The increased length allows for comfortable operation by people of varying heights.
3. Frameless Glass Doors
These doors rely heavily on minimalist design. Handles in the 400–1000 mm range balance subtlety with function, often in polished finishes to enhance the frameless look.
4. Sliding Glass Doors
Due to the door’s movement, protruding handles can interfere with adjacent walls or panels. Recessed or flush handles are recommended. In cases where a protruding handle is necessary, keep it short—150–400 mm—to prevent collisions.
E-Star Hardware’s Recommended Glass Door Handle Sizes
E-Star Hardware offers a comprehensive range of glass door handles, designed for both residential and commercial applications:
• Model ES213-PH-250 — 250 mm polished stainless steel shower handle, 19 mm diameter, ideal for 8–10 mm glass.
• Model ES205-PH-800 — 800 mm brushed stainless steel office pull handle, 32 mm diameter, for 10–12 mm glass doors.
• Model ES206-PH-1000 — 1000 mm satin finish frameless door pull, 25 mm diameter, back-to-back mounting.
• Custom Solutions — Lengths up to 1800 mm, tube diameters up to 38 mm, multiple finishes including matte black, gold, and bronze.
Installation Tips & Common Mistakes
1. Ensure Accurate Hole Spacing
A mismatch in hole spacing can prevent installation entirely or place stress on the glass.
2. Use Gaskets for Protection
Soft gaskets between the handle fittings and the glass prevent direct metal-to-glass contact, reducing the risk of cracks.
3. Select the Right Material for the Environment
Marine-grade stainless steel is essential for wet areas to prevent corrosion.
4. Avoid Oversized Handles on Small Door
This disrupts visual balance and may impede movement in confined spaces.
5.Verify Grip Comfort
Handles should allow a full, secure grip, particularly in high-traffic environments.
Frequently Asked Questions
Q: What is the most common size for a glass door handle?
A: For residential doors, 300–400 mm is common. Commercial entrances often use 800–1000 mm handles for visual impact and ease of use.
Q: What is center-to-center measurement?
A: It is the distance between the centers of the two handle mounting points. This measurement must be exact for proper fit.
Q: What is the standard hole spacing for shower glass handles?
A: Typically between 145 mm and 295 mm, depending on handle length.
Conclusion
Selecting the correct glass door handle size is essential for ensuring comfort, safety, and visual harmony. From compact shower handles to dramatic office entry pulls, E-Star Hardware offers solutions to meet every need. By following the measurement guidelines and size chart provided in this guide, you can confidently choose a handle that enhances both function and design.
Explore E-Star Hardware’s complete range of glass door handles today and find the perfect fit for your project.
